they are orabpel,oraesb and orawsm
In this exercise we will see about the orawsm
WSM stands for webservices security management.
Once you have installed SOA Suite you can open the owsm console using the following url
http://localhost:port/ccore
by default user id and password for owsm are admin/oracle.
ONce you will log in to the console you will get a screen like this.
Now click on Add New Component.
Now provide the details
Give Component name as some logical name,Component type will be gateway.
In the component URL provide url as
http://localhost:port/gateway
Please take care that this should be gateway
http://localhost:port/gateway as the .ear file which is deployed in the oc4j container is gateway
here something means you can give context as of your choice i have chosen it as testgateway.
Just register and you will get a component id.
Component id C0003003 is the default component id in my case however it used to be C0003001.
You can find this in the following file
SOA_HOME\owsm\config\gateway\gateway-config-installer.properties
Here you can find gateway.component.id=C0003003
By default if you create a component the component id is same as the component id mentioned in gateway.component.id
There can be only one component id and if you want to define other component id you can do so by creating another component
The new component thus created will be having different component id,However there is one important point
We can use only the component id which is registered in gateway-config-installer.properties
If you want to make another component running,you have to first change the component id which you wanted to run.
Goto the gateway-config-installer.properties and change the component id to the new id you wanted to.
In my case i wanted to change it to C0003001
So i went to the SOA_HOME\owsm\config\gateway\gateway-config-installer.properties location and change the value from
gateway.component.id=C0003001
once done the changes save it and now open a command console.
Go to the following location
SOA_HOME\owsm\bin
and use the following command
wsmadmin deploy gateway
Provide the orawsm password.
So finally it should get succedded
Once it is successfull you need to restart your server.
Now you can use the component id C0003001
This was an illustration of how you will use different component id however in our case we will be using the component id C0003003
as it was created by default for me.
Now go to policy management and click on Register Services
Now click on the Services
Add a new Service
Now provide service name and its version and provide the wsdl url that you wanted to be passed through a gateway.
Commit the changes
Now go to view details and find the new URL that has been created for the process.

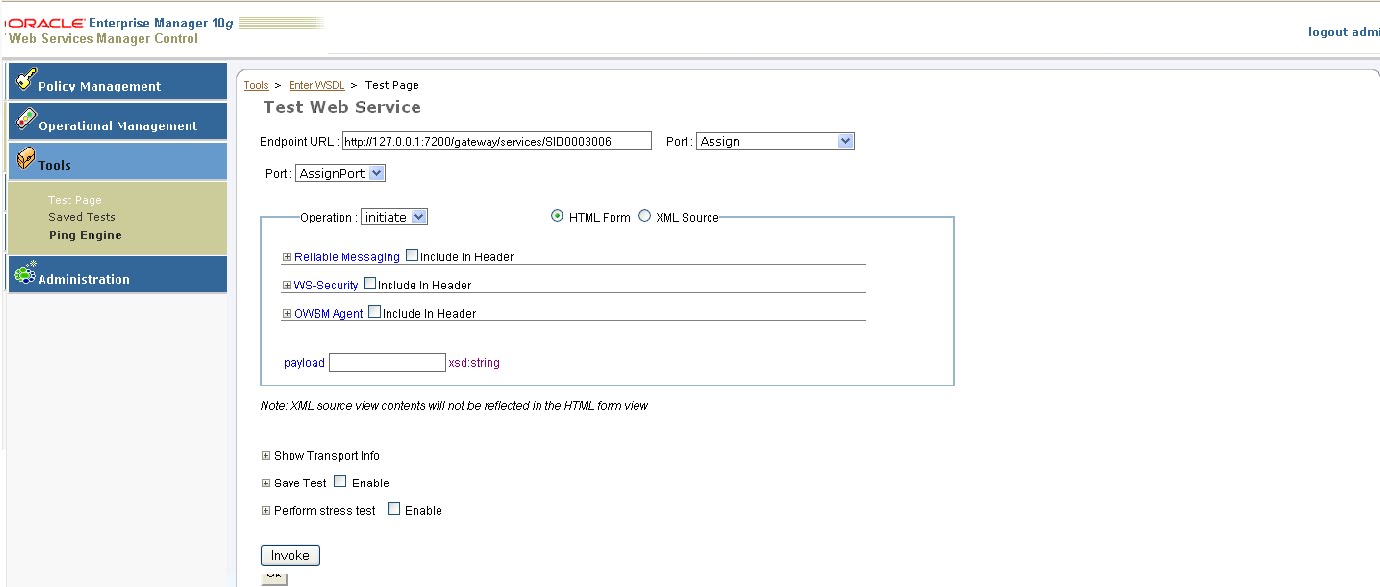

Now in the tools test page check if this works.This is the url that you have to provide to the customer.
Now go to Policy Management -->Management Policies and choose the edit button for the test gateway which you have created.
It will come up with a screen like this
Add steps below the pipeline request to Extract credentials.
Configure it and Change the credential from http tp WS-BASIC
Add one more step below to File Authenticate.
Say ok and
Now before configuring
Create a folder structure
D:\Encrypt and within that create a file called a.htpasswd.
Within the file write arpit:arpit
which corresponds to (user:password)
This is the user id and password to authenticate.
go to command console
GO to SOA_HOME\owsm\bin
and execute following command
and execute the following command
wsmadmin md5encode D:\encrypt\a.htpasswd arpit
Provide arpit as password also when asked,it has to match with the userid and password provided in the a.htpasswd file
Now if you will check the a.htpasswd file you will find it is encrypted.
Now configure the file Authenticate
use the location of the password file and use md5 as file format.
Say ok and next and save the policy.Finally commit the policy.
Now again go to tools -->test page and test the page you will get an error like this.
<SOAP-ENV:Envelope xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/"><SOAP-ENV:Body><SOAP-ENV:Fault><faultcode xmlns:p="http://schemas.oblix.com/ws/2003/08/Faults" xmlns="">p:Client.AuthenticationFault</faultcode><faultstring xmlns="">Invalid username or password</faultstring><detail xmlns=""/></SOAP-ENV:Fault></SOAP-ENV:Body></SOAP-ENV:Envelope>
Now again invoke the same serive using credectials as shown below using WS-Security
Now this time invoke while including ws security and give the user id and password and now invoke it will work fine.
This was asynchronous process so we have set it for request only.
If it is a synchronous process then we can set it for both request and response parameters.
You can try for other format there are a lot of possibilies this is one example only.
